Transformers are essential devices in the field of electrical engineering, playing a crucial role in the transmission and distribution of electrical energy. They are used to change the voltage levels in alternating current (AC) systems, allowing for efficient power transfer over long distances. This blog delves into the principles of operation, types, applications, and advantages associated with transformers, providing a comprehensive understanding of their significance in modern electrical systems.

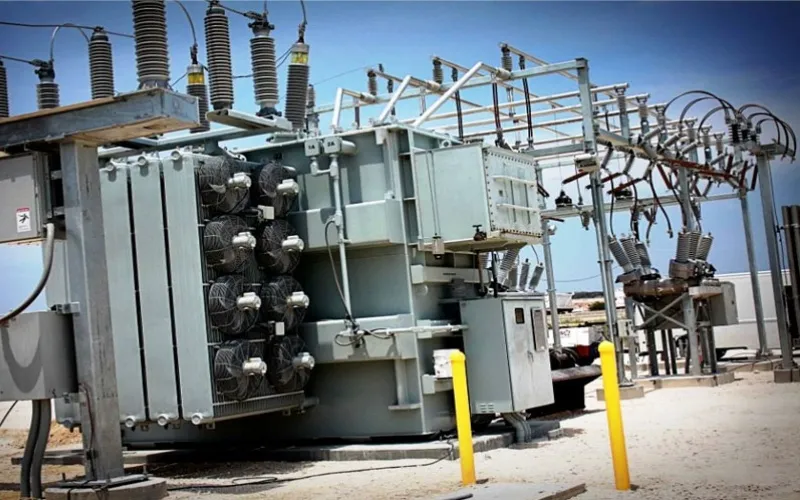

Transformer is an electrical device that transfers electrical energy between two or more circuits through electromagnetic induction. It is primarily used to increase (step up) or decrease (step down) voltage levels in alternating current (AC) systems while maintaining the same frequency. Transformers are fundamental components in power distribution and transmission systems.
Principles of Operation
The fundamental principle behind the operation of a transformer is electromagnetic induction, discovered by Michael Faraday in the 19th century. When an alternating current flows through a coil of wire (the primary winding), it generates a magnetic field around it. This magnetic field can induce a voltage in a nearby coil (the secondary winding) if the two coils are magnetically coupled.
Primary Winding: This is the coil connected to the input voltage source. The alternating current flowing through this winding creates a magnetic field.
Secondary Winding: This coil is connected to the output circuit. The magnetic field generated by the primary winding induces a voltage in the secondary winding.
Core: The core is typically made of ferromagnetic material, such as silicon steel, which enhances the magnetic coupling between the primary and secondary windings. The core also helps to reduce energy losses due to stray magnetic fields.
Transformers come in various types, each designed for specific applications. Here are some of the most common types:
1. Step-up Transformer
Step-up transformer increases the voltage from the primary to the secondary winding. It has more turns in the secondary winding than in the primary winding. These transformers are commonly used in power generation stations to increase the voltage for efficient transmission over long distances.
2. Step-down Transformer
Conversely, step-down transformer decreases the voltage from the primary to the secondary winding. It has more turns in the primary winding than in the secondary winding. These transformers are widely used in distribution systems to reduce high transmission voltages to usable levels for homes and businesses.
3. Isolation Transformer
Isolation transformer provides electrical isolation between its primary and secondary windings while maintaining the same voltage level. This type of transformer is used to protect sensitive equipment from electrical noise and surges, as well as to enhance safety by isolating the equipment from the power source.
4. Auto Transformer
Auto transformer has a single winding that acts as both the primary and secondary winding. It provides variable voltage transformation and is often used in applications where a small voltage adjustment is needed, such as in voltage regulators.
5. Three-phase Transformer
Three-phase transformers are used in three-phase power systems, which are common in industrial applications. They can be constructed as three separate single-phase transformers or as a single three-phase unit. These transformers are essential for efficiently transmitting and distributing three-phase power.
6. Distribution Transformer
Distribution transformers are used to step down high transmission voltages to lower levels suitable for residential and commercial use. They are typically located near the end-users and are designed for continuous operation.
7. Instrument Transformer
Instrument transformers include current transformers (CTs) and voltage transformers (VTs) used for measurement and protection in electrical systems. CTs are used to measure high currents, while VTs are used to measure high voltages, allowing for safe monitoring and control of electrical systems.
Transformers are utilized in a wide range of applications across various industries. Some of the key applications include:
1. Power Transmission
Transformers are crucial in the transmission of electrical power over long distances. High voltages are used to reduce current, which minimizes energy losses due to resistance in the transmission lines. Step-up transformers are employed at power generation stations to increase voltage, while step-down transformers are used at substations to reduce voltage for distribution.
2. Power Distribution
In power distribution systems, transformers are used to step down high transmission voltages to levels suitable for residential and commercial use. Distribution transformers are typically located near end-users, ensuring that electricity is delivered at safe and usable voltage levels.
3. Industrial Applications
Transformers are widely used in various industrial applications, including powering motors, generators, and control systems. They are essential for providing the appropriate voltage levels required for different types of machinery and equipment.
4. Electronics
In electronic devices, transformers are used for voltage regulation, impedance matching, and signal isolation. They are commonly found in power supplies, audio equipment, and communication devices.
5. Renewable Energy
Transformers play a vital role in connecting renewable energy sources, such as solar panels and wind turbines, to the power grid. They help to step up the voltage generated by these sources for efficient transmission and distribution.
6. Electric Vehicles
With the rise of electric vehicles (EVs), transformers are increasingly used in charging stations to convert grid voltage to the appropriate levels for charging EV batteries. They ensure that the charging process is safe and efficient.
Transformers offer several advantages that make them indispensable in electrical systems:
1. High Efficiency
Transformers operate with high efficiency, typically over 95%. This efficiency minimizes energy losses during voltage conversion, making them ideal for power transmission and distribution.
2. Voltage Regulation
Transformers help maintain consistent voltage levels across power systems, which is crucial for the stability and performance of electrical equipment. This regulation ensures that devices receive the appropriate voltage for optimal operation.
3. Safety
Isolation transformers provide safety by electrically isolating circuits, reducing the risk of electric shock. This feature is particularly important in sensitive applications, such as medical equipment and laboratory instruments.
4. Flexibility
Transformers can be designed for various applications, from small electronic devices to large power transmission systems. This versatility allows them to meet the diverse needs of different industries.
5. Cost-effectiveness
By optimizing power transmission and performance efficiency, the transformer serves to be a cost-effective solution for various electrical projects.
Transformers are vital components in electrical and electronic systems, enabling efficient power transmission and distribution. Their ability to adjust voltage levels while maintaining energy efficiency makes them indispensable in various applications, from industrial power systems to everyday household devices. Understanding the principles, types, applications, and advantages associated with transformers is essential for anyone involved in electrical engineering, power management, or related fields. As technology continues to evolve, transformers will remain a cornerstone of modern electrical infrastructure, facilitating the safe and efficient delivery of electrical energy to meet the growing demands of society.
